$16.50 Fuel Gauge/Troubleshooter/Watt Meter For Your Electric Fatbike

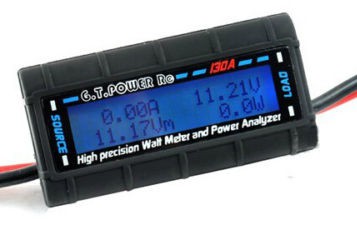

I bought a couple of GT Power LCD RC 130A Watt Meter Power Analyzer Ver.2 High Precision off ebay a couple of months ago off Ebay for $16.50 shipped.

$_12

More Cheap Chinese Crap (CCC) to hang off your handlebars.

This unit is quite handy to use as a troubleshooting device as well as just using it as a low budget fuel gauge. If the battery cuts out on your BBS02 often it is not immediately obvious if the battery pack has hit the low voltage cutoff or if the BMS has shut down. If you have this device in between the battery and the controller then it is obvious what has failed because if the battery is still producing power then the display will be on, if the display has gone dark then the battery is your issue.

This unit is only good up to 60v and my 48v packs are frequently at 59v when I pull them off the charger. This means that you can’t use this meter with anything over 48v rated nominally. If you plug it in and the screen flashes on and off that is just showing that there is too much voltage. Once you start producing a load on the battery the display should come up and read properly.

Make sure to push it all the way into the plastic housing till it clicks.

Make sure to push it all the way into the plastic housing till it clicks.

The way I use it is to crimp Anderson Powerpole connectors on the pigtails then you can hang it off the power line wherever you want to keep track of what kind of power you are using. If you have a 20Ah battery it should be able to deliver close to that before the BMS shuts down. You can also use it backwards to see how much juice you battery can take before it stops taking a charge, which is pretty cool.

It has some issues in the cold which would be expected of a $15 watt meter, sometimes the display is hard to read, other times the display is really, really hard to read especially when the temps approach 0 degrees F. For the most part it works as advertised, the Volts, Amps and Watts are always displayed and the bottom left hand corner switches between Ah, Vm and Wh which can be a little annoying.

CA3-DP

For when you really want to impress the ladies…

It’s no Cycle Analyst that is for sure, but if you’re a cheap skate like me and have a whole fleet of ebikes this little watt meter might work great to help you keep an eye on how much power you’ve used and how much you’ve got left for a lot less than a $130 Cycle Analyst. The cheapest I can find it for now is around $20 shipped on ebay, search for “GT Power LCD RC 130A Watt Meter Power Analyzer Ver.2” and it should come up. Better yet buy one for $30 with XT90 connectors and 2 extra XT90 connectors included from Lunacycle.com right here.

Only $30 from a US ebike vendor Lunacycle.com with extra XT90 connectors.

Only $30 from a US ebike vendor Lunacycle.com with extra XT90 connectors.

Ride On.

12 thoughts on “$16.50 Fuel Gauge/Troubleshooter/Watt Meter For Your Electric Fatbike

  1. Pingback: Deep Powder’s Insatiable Appetite For Watts | Electric-FatBike.com

  2. Pingback: A Hackers Guide To Programming The BBS02 | Electric-FatBike.com

  3. Pingback: Troubleshooting Problems On Your BBS02 Unit | Electric-FatBike.com

  4. Pingback: XT60 & XT90 With Spark Arrestors – Why You Should Make The Switch | Electric-FatBike.com

  5. Pingback: How To Buy Your First Ebike Or Ebike Kit And Not Get Punked | ElectricBike-Blog.com

  6. Could I run this off a my light’s leads? My light draws of my Luna 52 V 13.5 ah battery that is frame mounted. The black and red wires are soldered on to my battery mount. Or does the “fuel gauge” need to inline from battery mount to controller? I suspect that as long as it is connected somehow to the battery it will give me the info I am looking for. I run a BBsHD on a fatbike with a Grin Tech light….
    Thanks,

    Like

    • No, in order to be an accurate fuel gauge this unit must be located between the drive unit and the battery.

      You can hook it up the charging leads but all you’ll get is the voltage, not the Ah which is what you want.

      Like

  7. Drive unit? In my case that would mean my Hub motor? So, I would need to tap into somewhere on the power feed to my hub motor? Between the battery and the motor? I wish someone would put out clear instructons on where to tap into. I read in another post tap into the controller?

    Like
